Bit Bang Gaming

Bit Bang Gaming PASTA PCB

Bit Bang Gaming PASTA PCB

Regular price $96.95 AUD
Regular price Sale price $96.95 AUD
Sale Sold out
Shipping calculated at checkout.

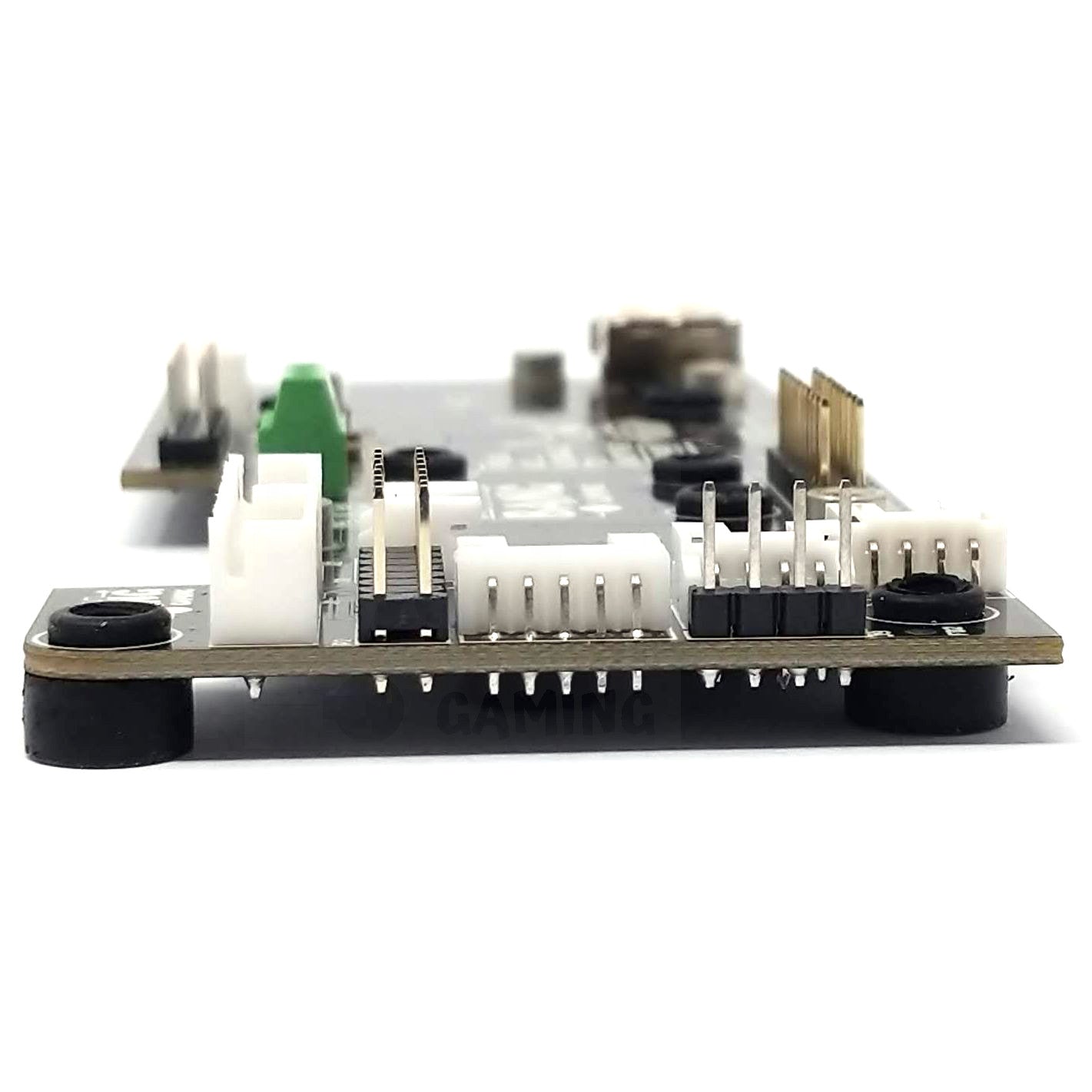

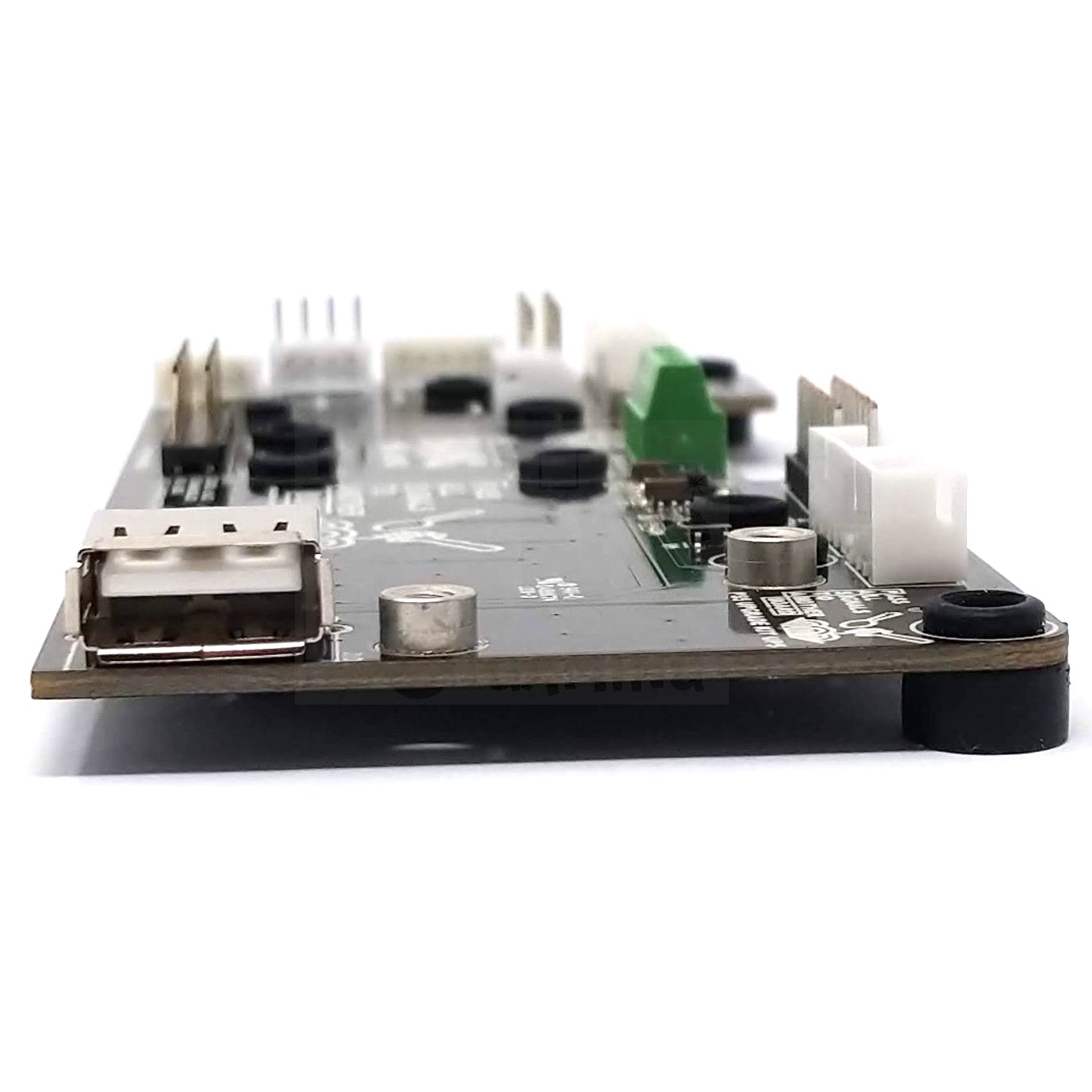

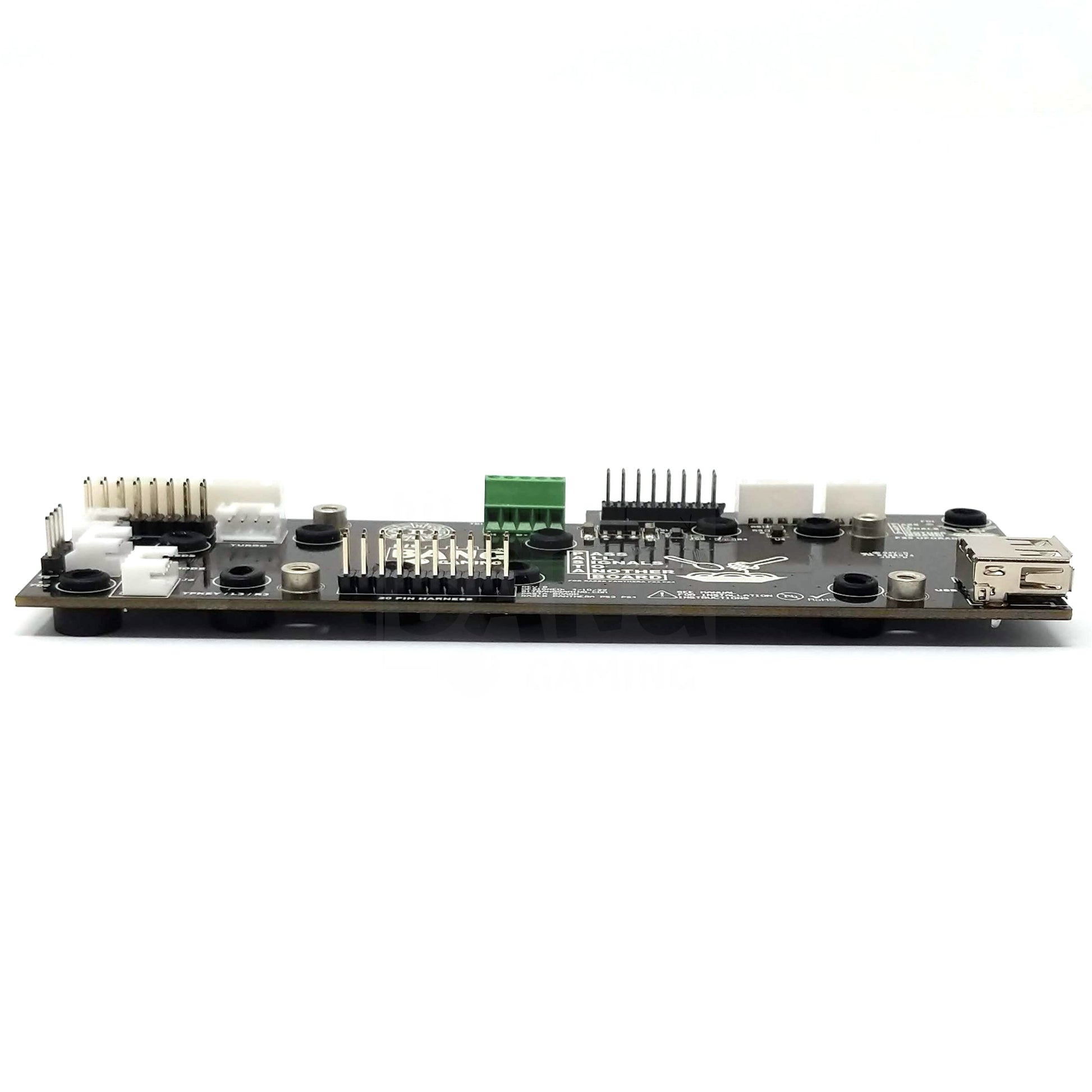

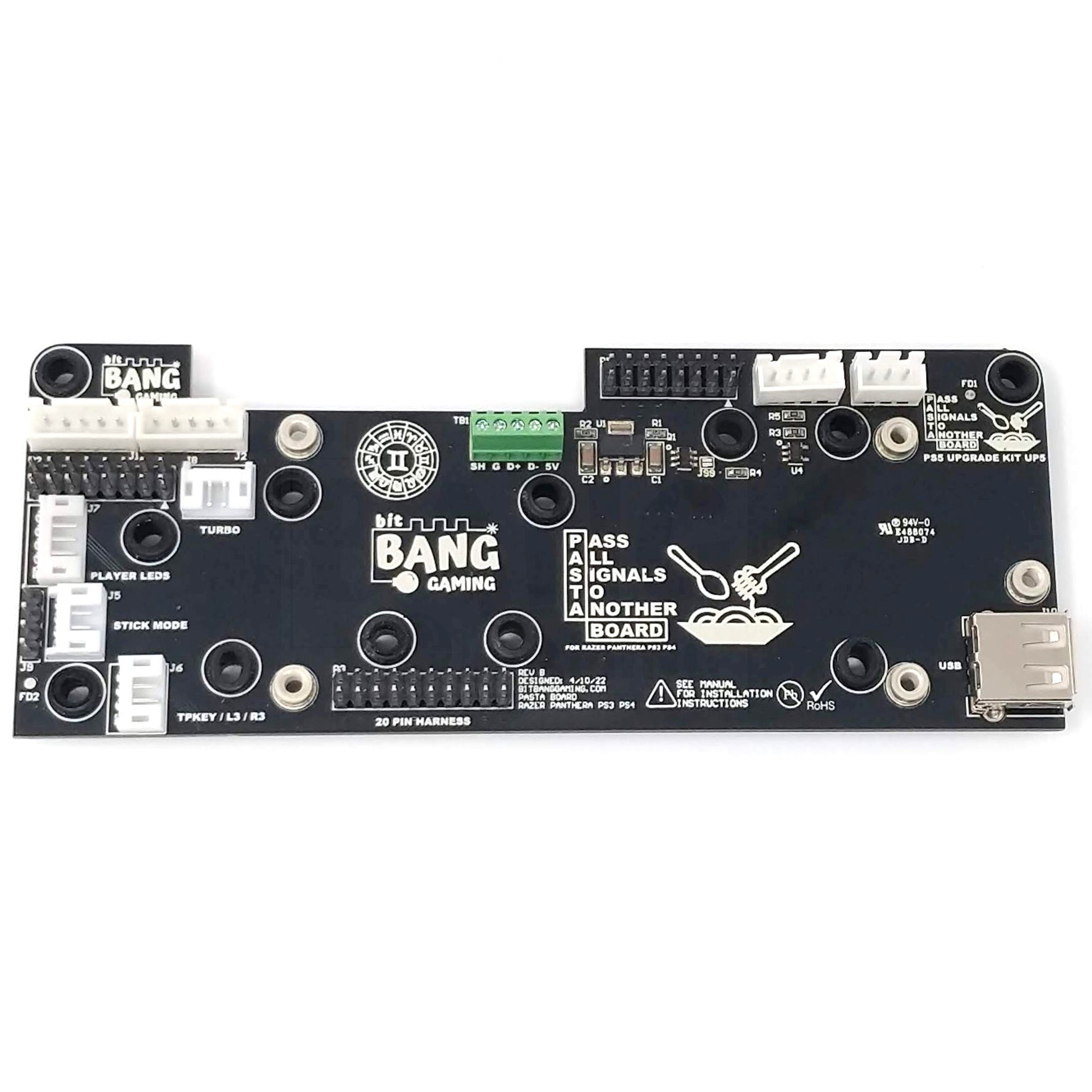

A specially designed breakout PCB for the highly popular Razer Panthera PS3/PS4 stick for easy addition of aftermarket control boards (Brook, BBG, ENTH), proudly made by Bit Bang Gaming.

The PASTA is at the forefront of hassle free modding for the gamer. This product represents an easy method of keeping legacy, popular, quality fightsticks like the Panthera, relevant in an ever changing technology climate within the FGC.

 The PASTA (Pass All Signals To Another) PCB, when implemented with an aftermarket PCB has the following features;

  • Retention of the main button functions/inputs (1P-4P, 1K-4K, UP/DOWN/LEFT/RIGHT, START, SELECT, HOME).
  • Retention of the secondary button functions (TPKEY, TURBO, L3, R3).
  • Retention of the player LEDS and stick mode (LS, DP, RS) functions.
  • Retention of the lock switch functions.
  • Option to wire up a turbo button by repurposing the case PS3/PS4 slide switch.
  • Wire up a turbo LED by repurposing case LED on the latch opening button
  • Implement USB wiring via the 5-pin terminal block. Includes short length USB cable.
  • PS5 upgrade kit compatibility via a mounting method for Brook PCBs.

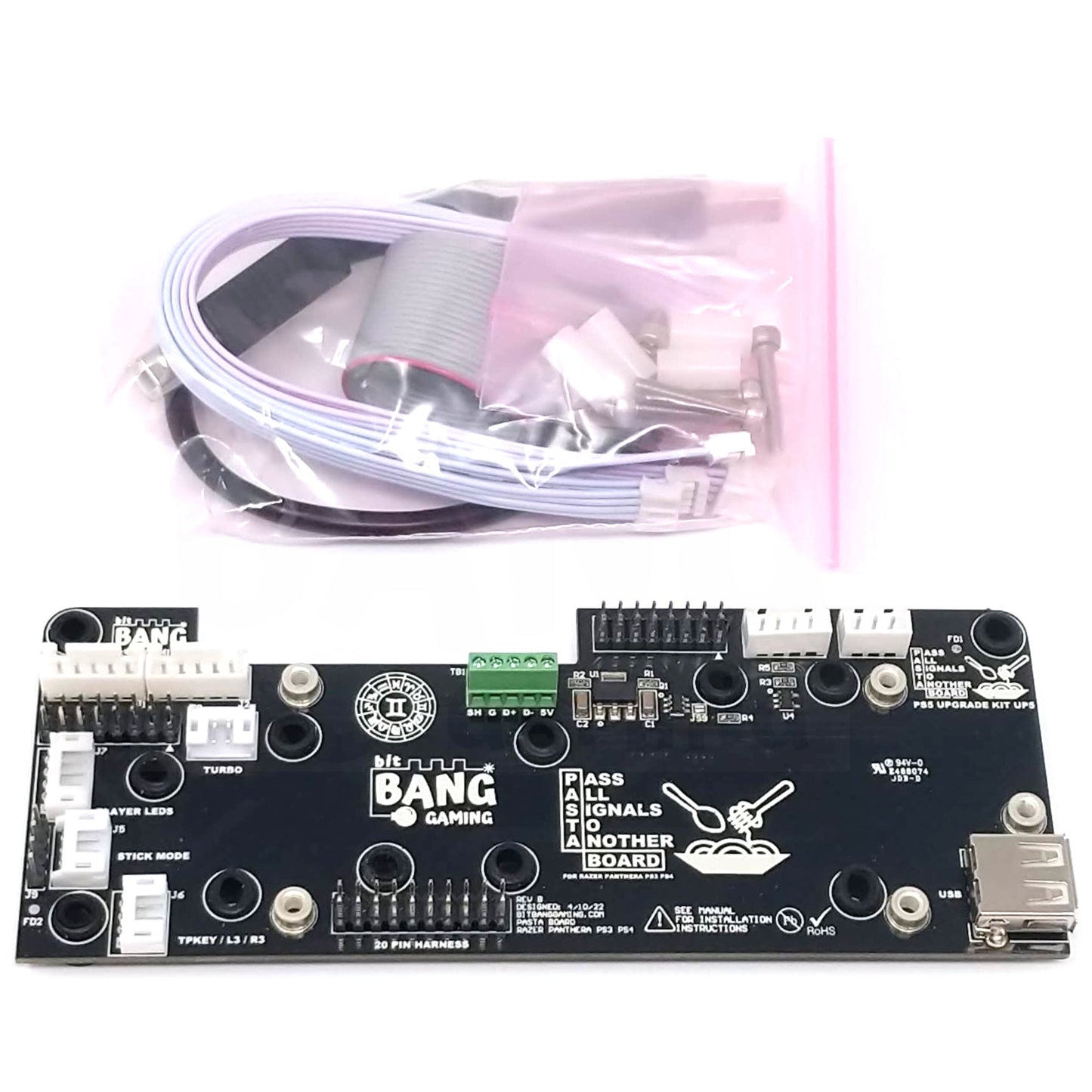

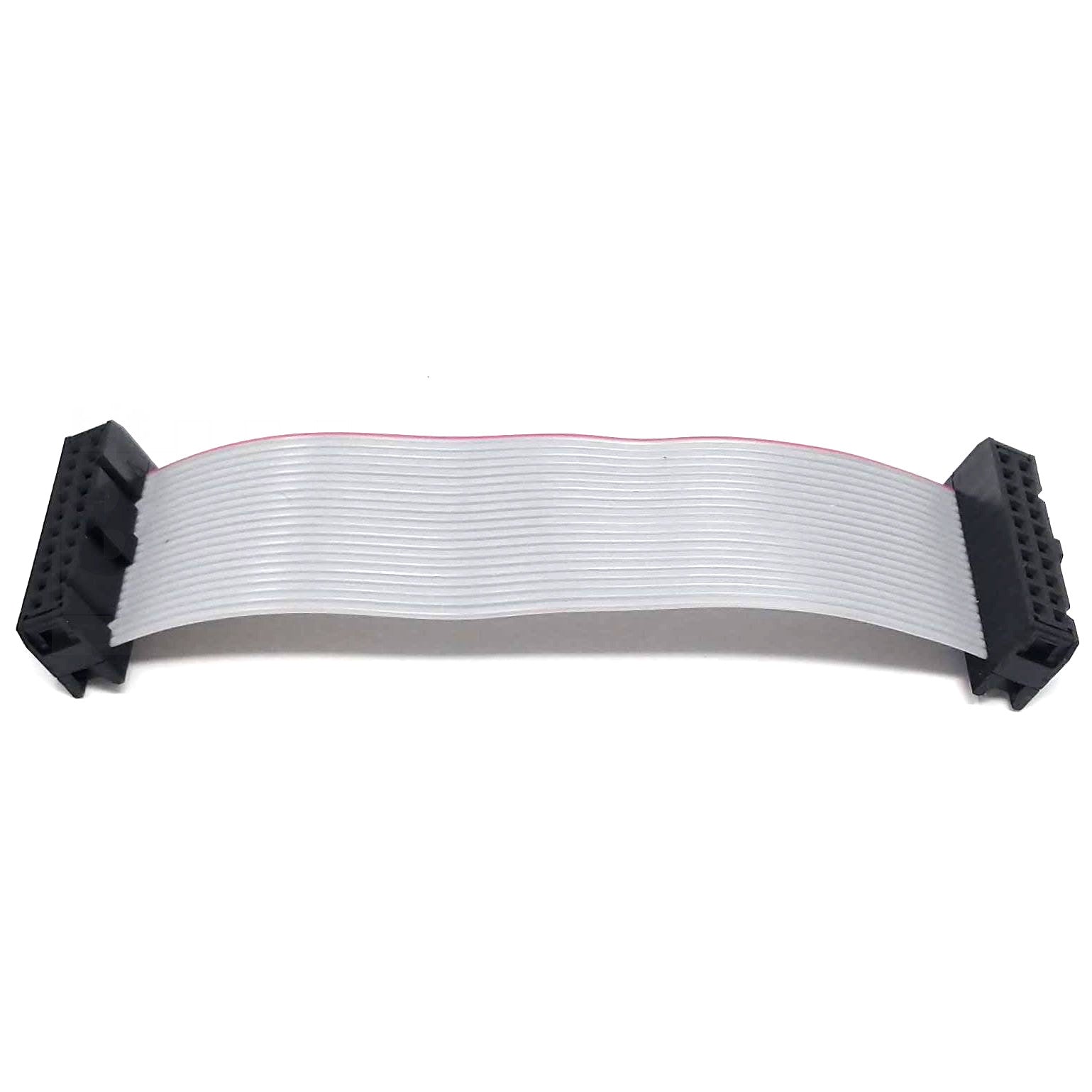

All necessary screws, cables and spacers are included for hassle free installation.
