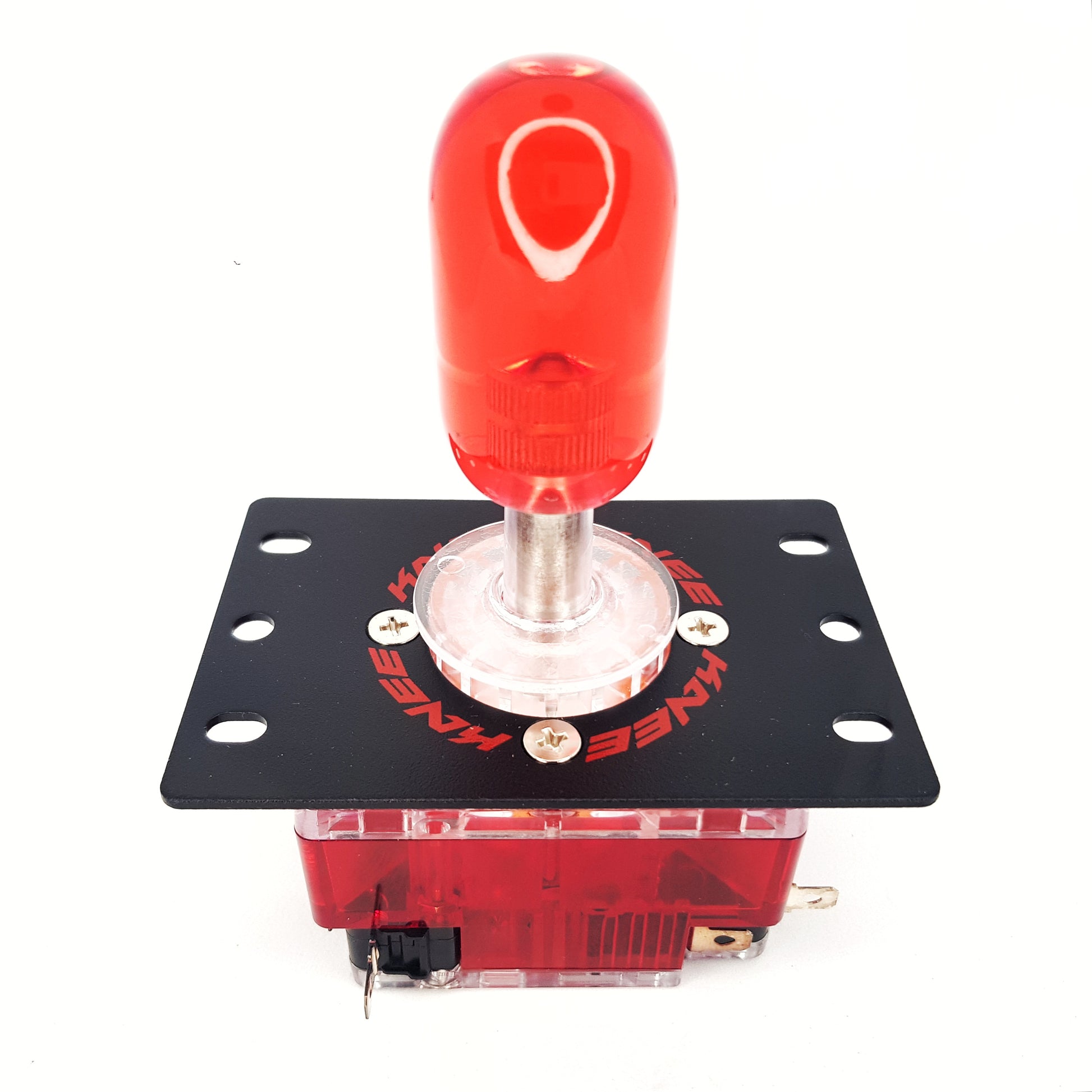

Samducksa (aka. Crown) Knee Lever joystick - Neo Edition

A visually striking, high performance and premium joystick named after pro Tekken player Jae-min "Knee" Bae, in collaboration with and manufactured by Samducksa.

Knee has a legacy of wins and/or high placings within the professional Tekken worldwide scene, some of which was achieved with his own custom lever. Part of the evolution of this Neo Edition lever was implementing other pro Tekken player joystick performance feedback and putting into place his own experience and observations pertaining to parts.

The Knee lever Neo captures a large array of gameplay performance enhancements:

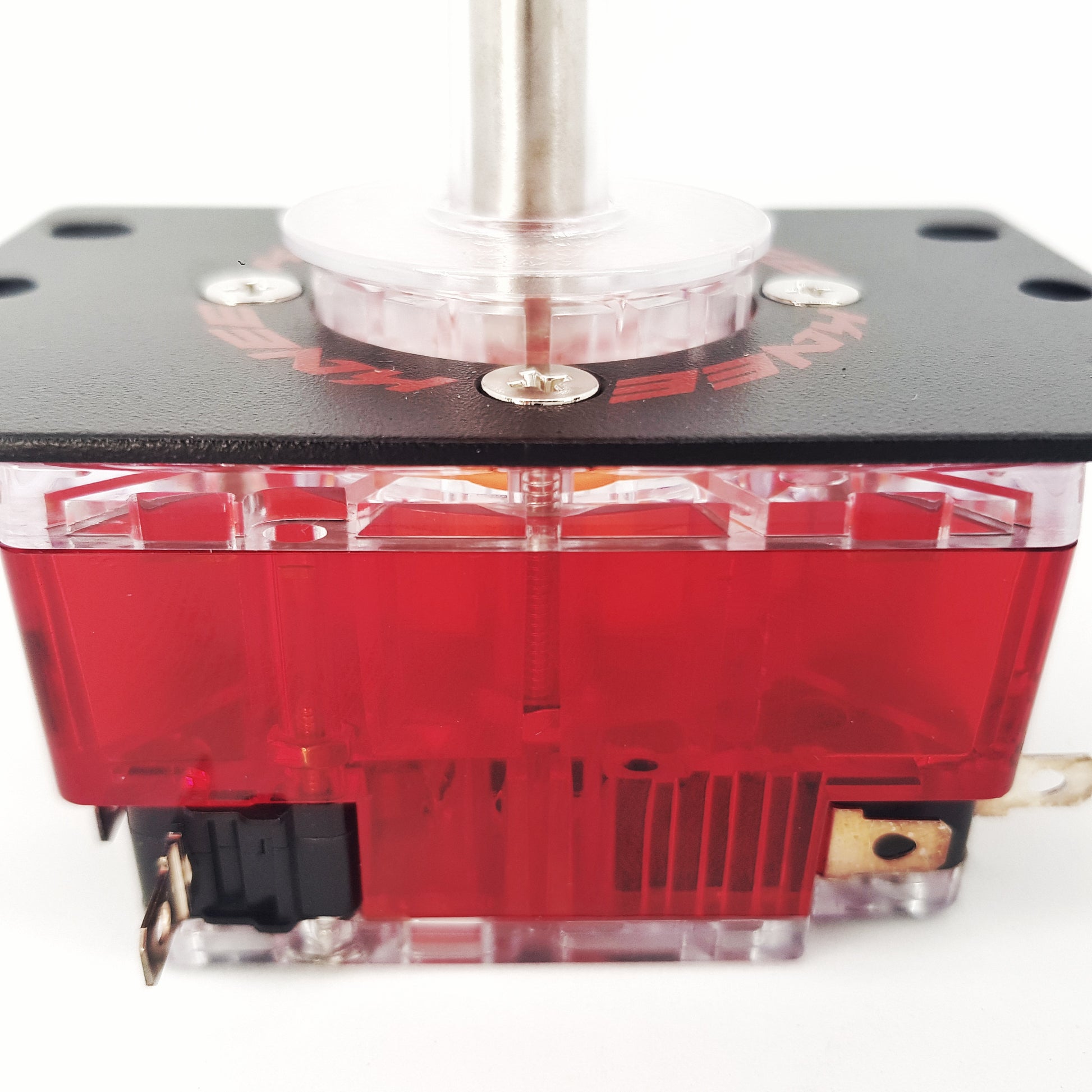

• Weight saving clear/red polycarbonate joystick body
• Stainless steel shaft

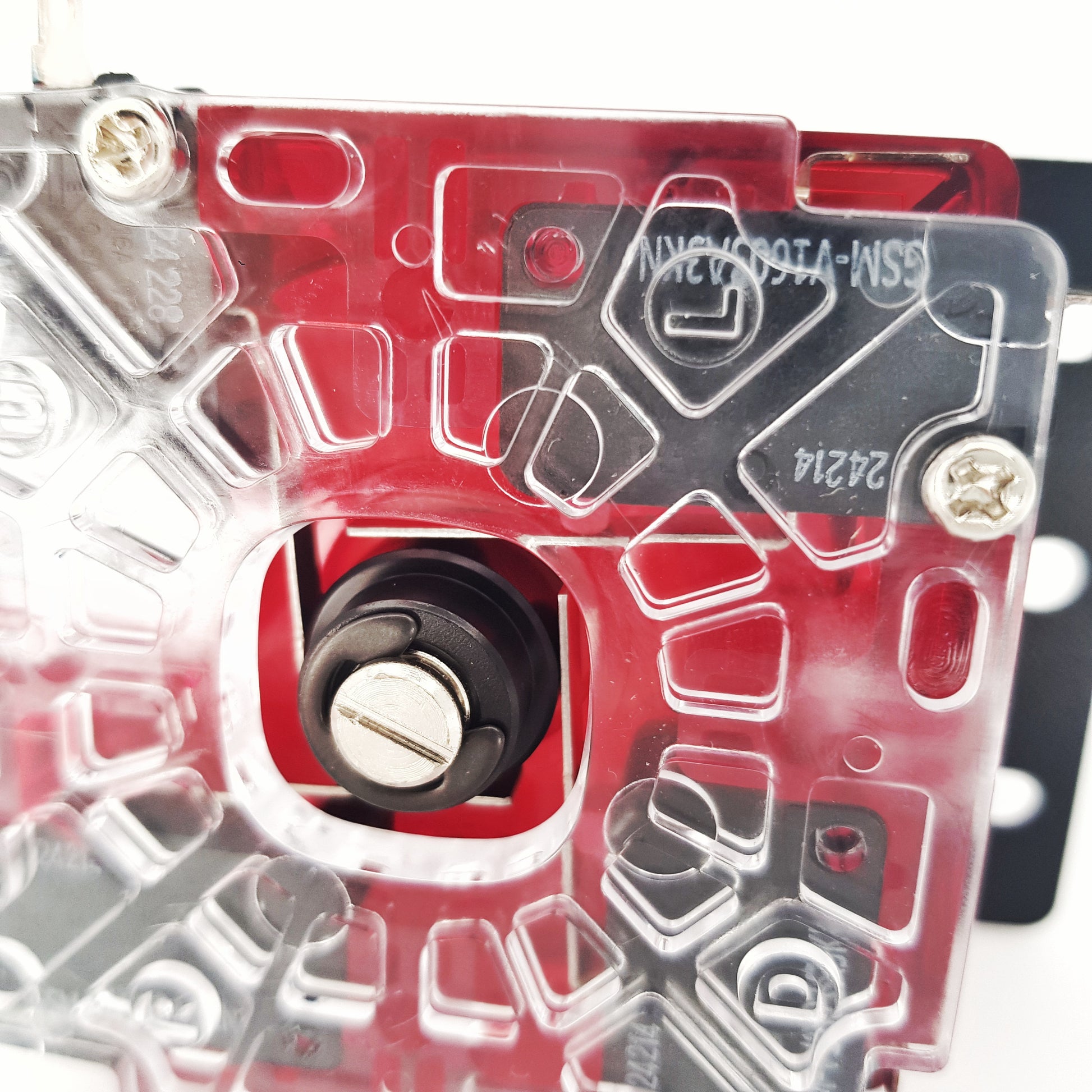

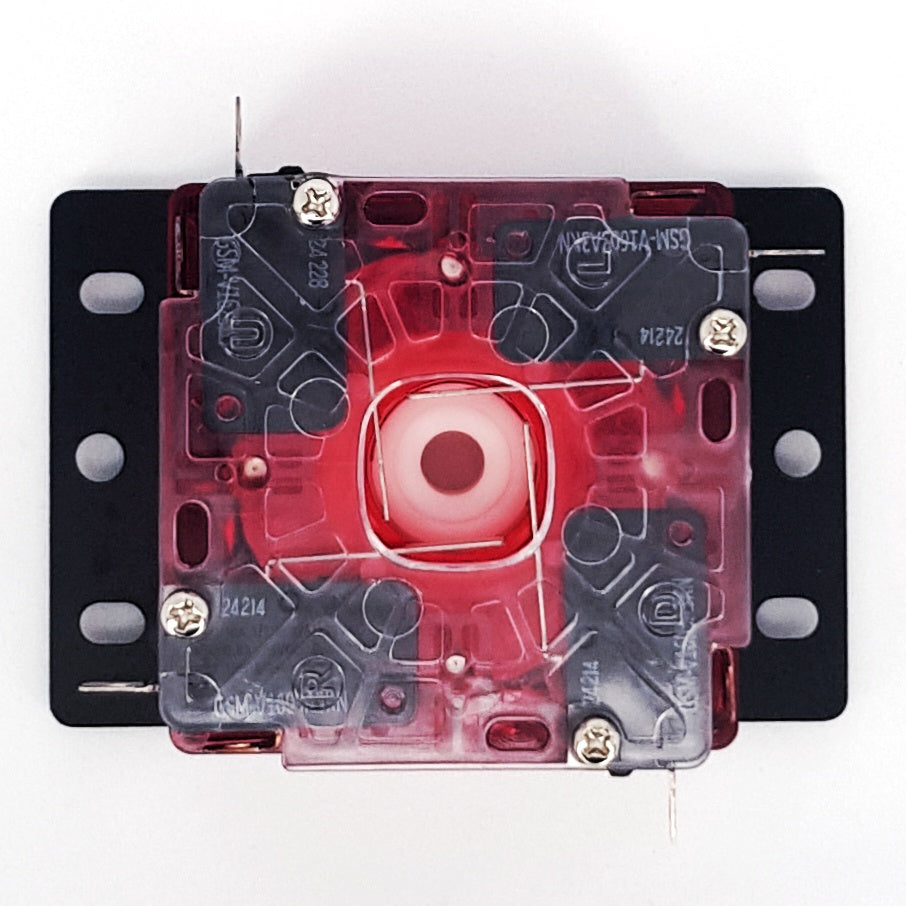

• 3 x Gersung A3KN wide hinge switches with 1 x Gersung A3 standard hinge switch
• Specialised 30+ tension silicone grommet, unique to this lever

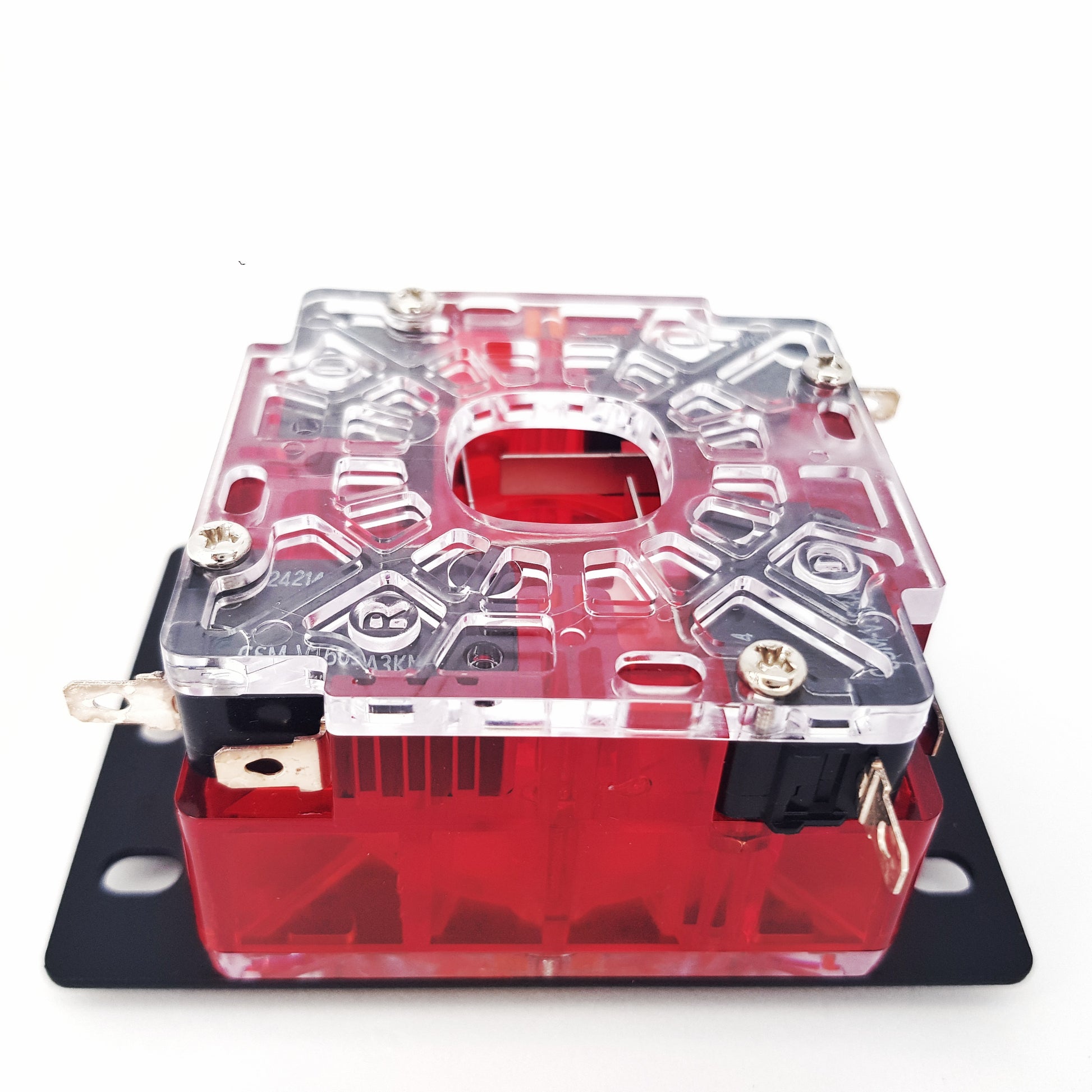

• Squared circular restrictor gate for improved cornering movement
• Bobbin made from acetal for high tensile strength, low friction and abrasion resistance
• 1mm oversize acetal actuator
• Coated/printed mount plate compatible with JLF bolt holes for easy installation

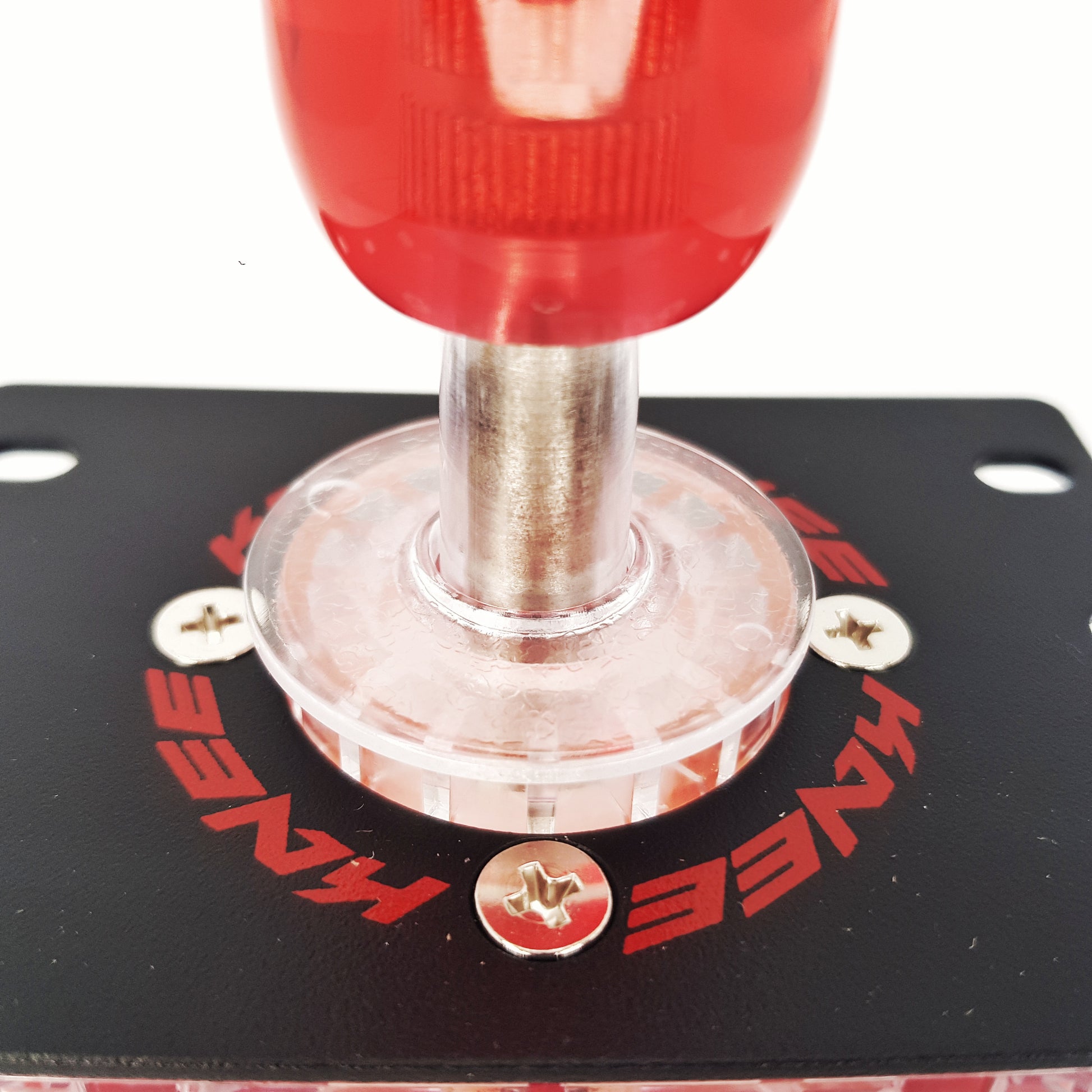

• Clear shaft and dust washer

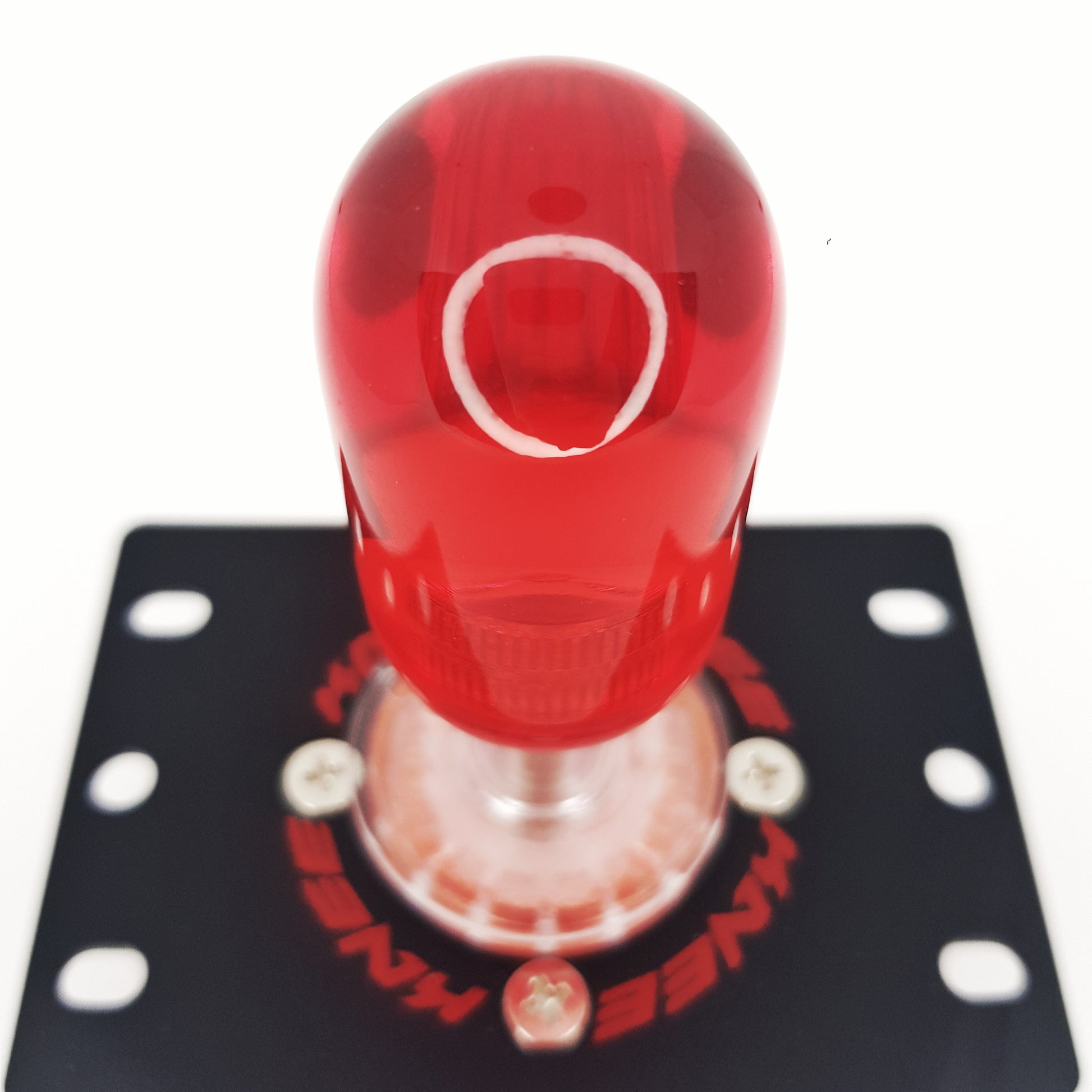

• Translucent red capsule type bat top

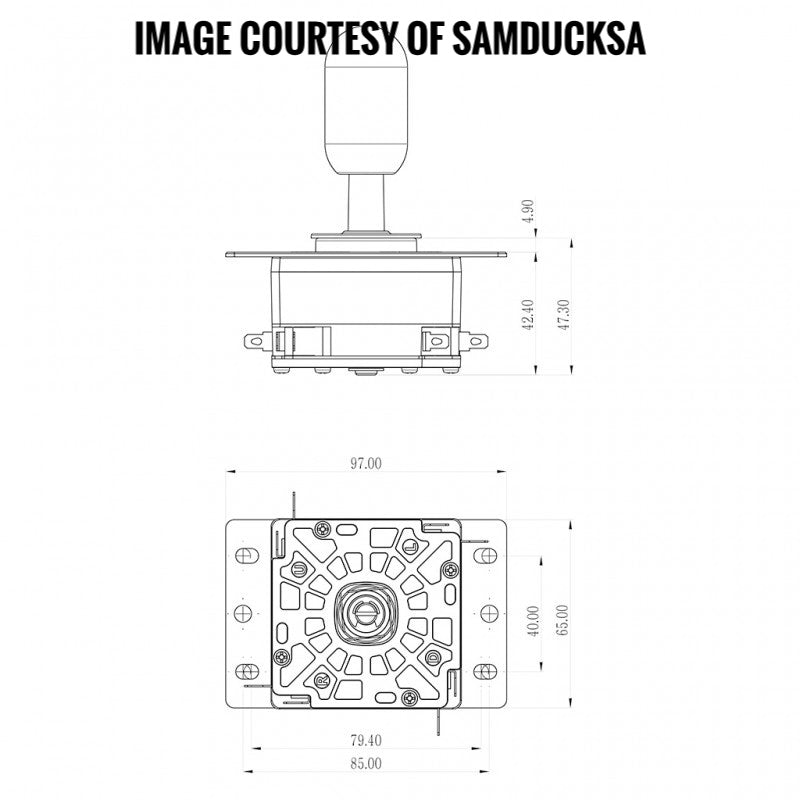

(Knee lever internal space mounting requirements as follows: 65mm wide, 97mm long, 43mm high).

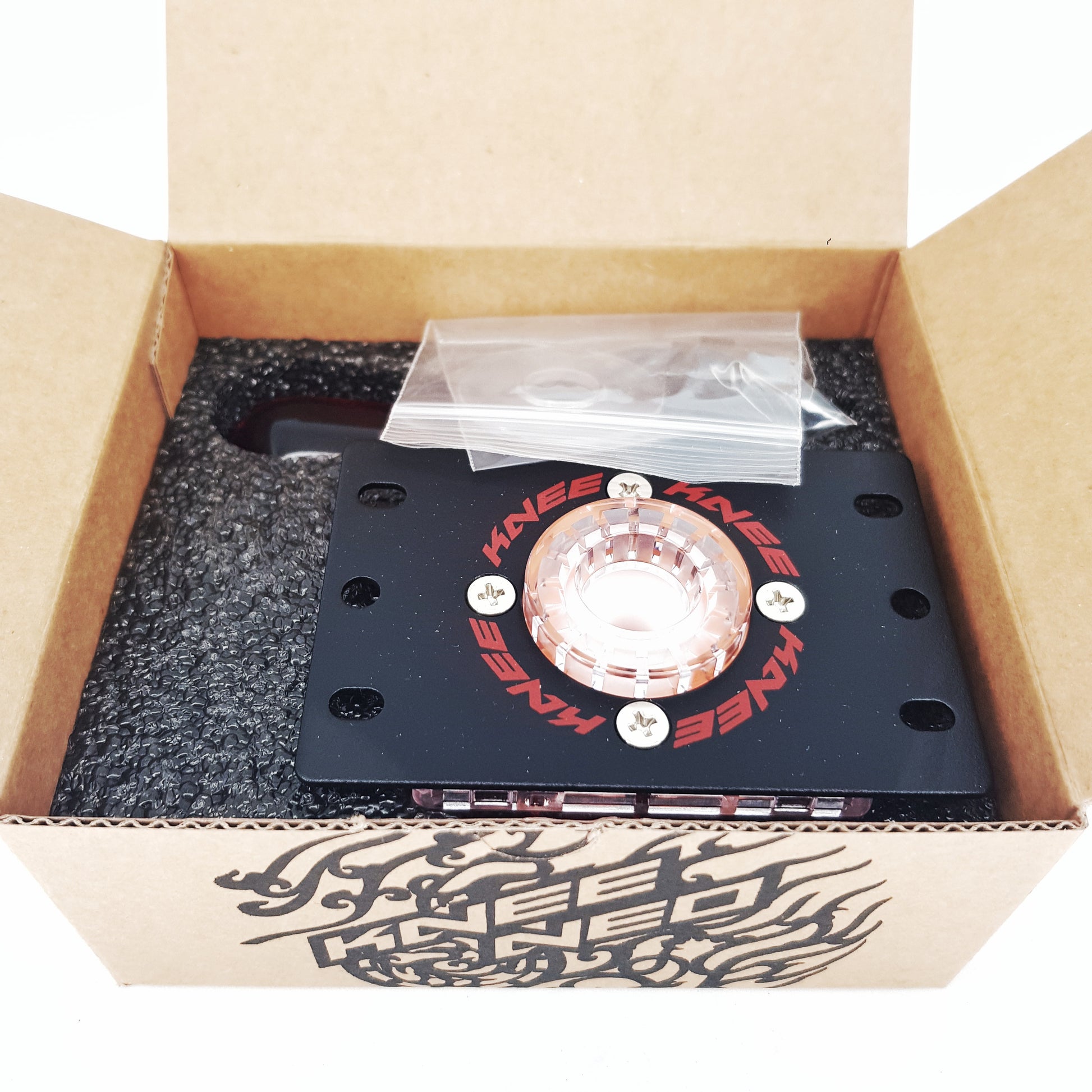

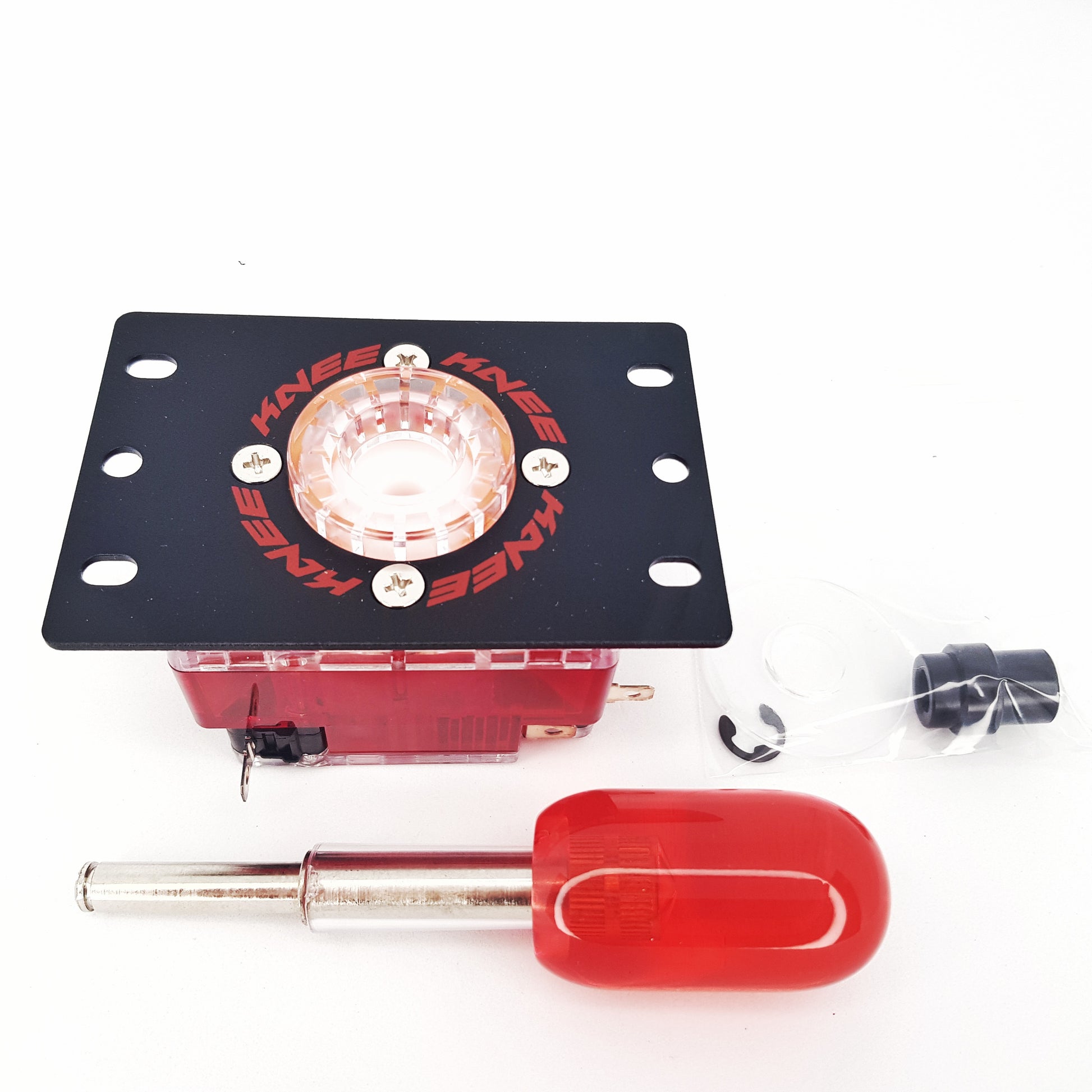

Available as an unbuilt product as per shipped from the manufacturer or a pre-built product ready to be installed and utilised.

(Note: Use of a .187 to 5 pin conversion harness is required if using the Knee lever in a fightstick that usually houses a Japanese 5 pin joystick)
