Sanwa JLX silent TPML-MA PCB

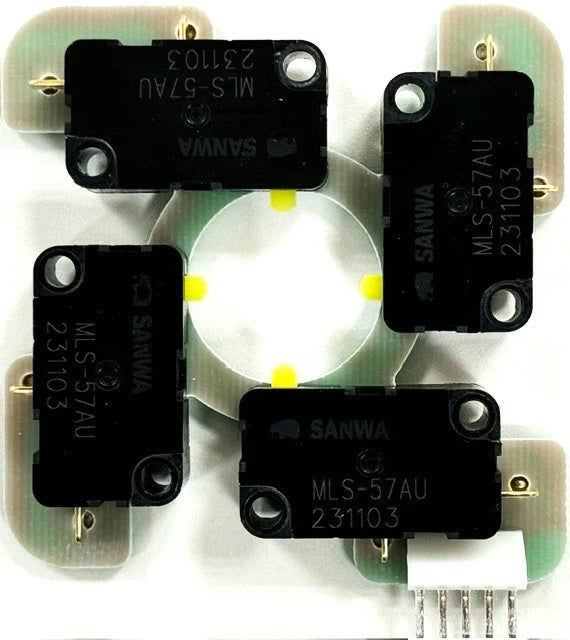

A standalone microswitch PCB from Sanwa Denshi's newest innovation within the silent joystick JLX-TPML-8YT-SK.

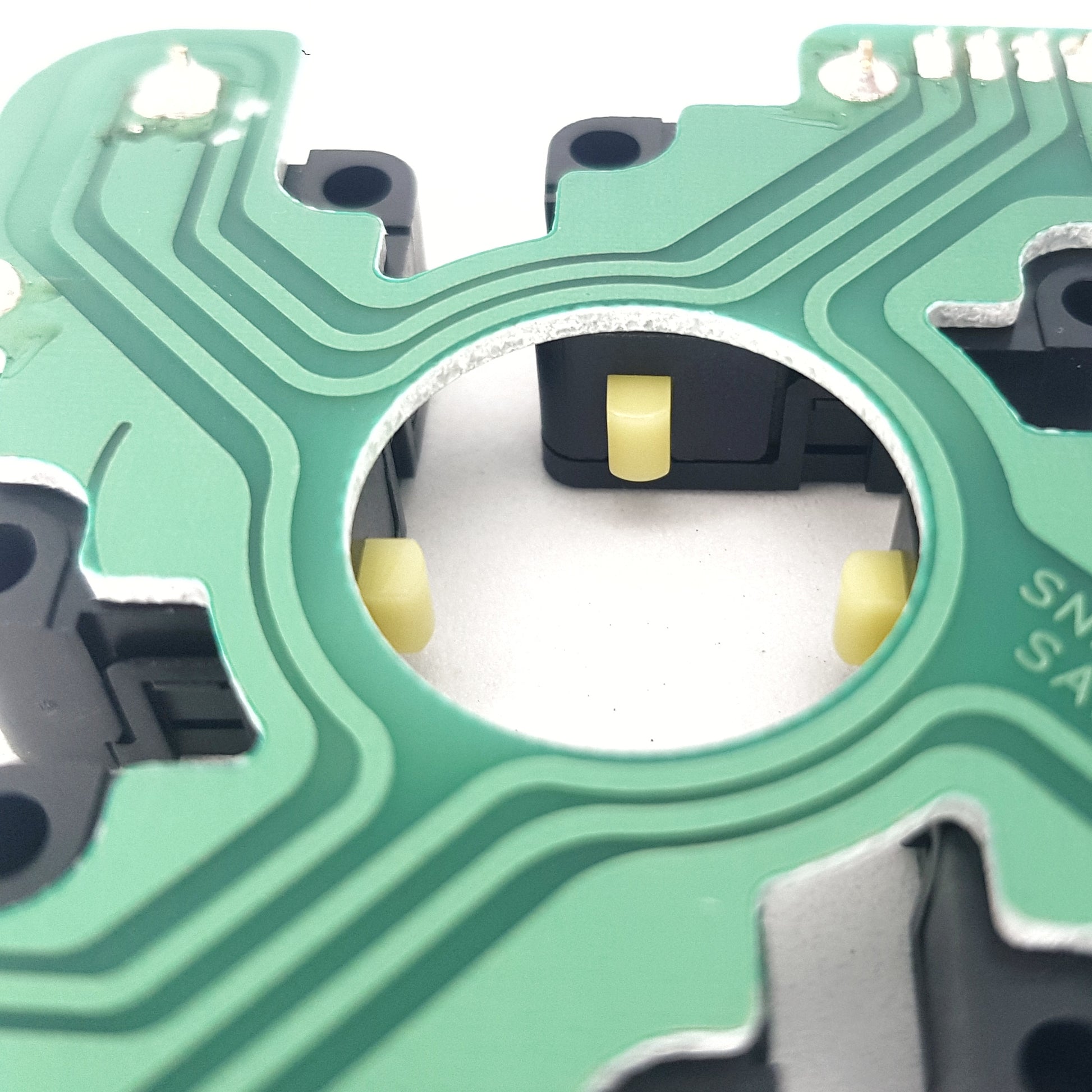

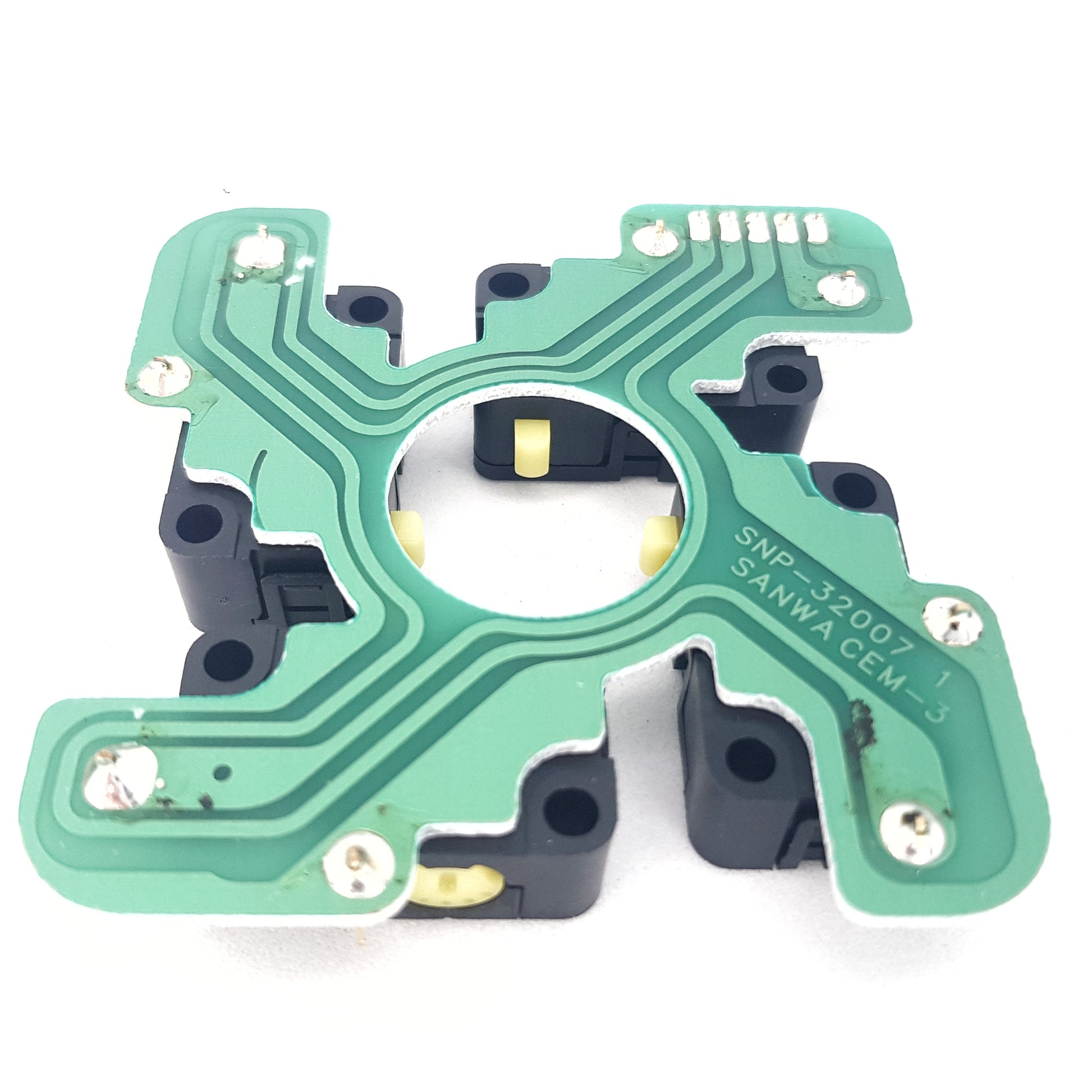

This product is the integrated PCB and microswitch assembly, representing a momentous evolution in joystick technology. Each microswitch features a five (5) position variable leaf switch that can be individually tuned for input timing.

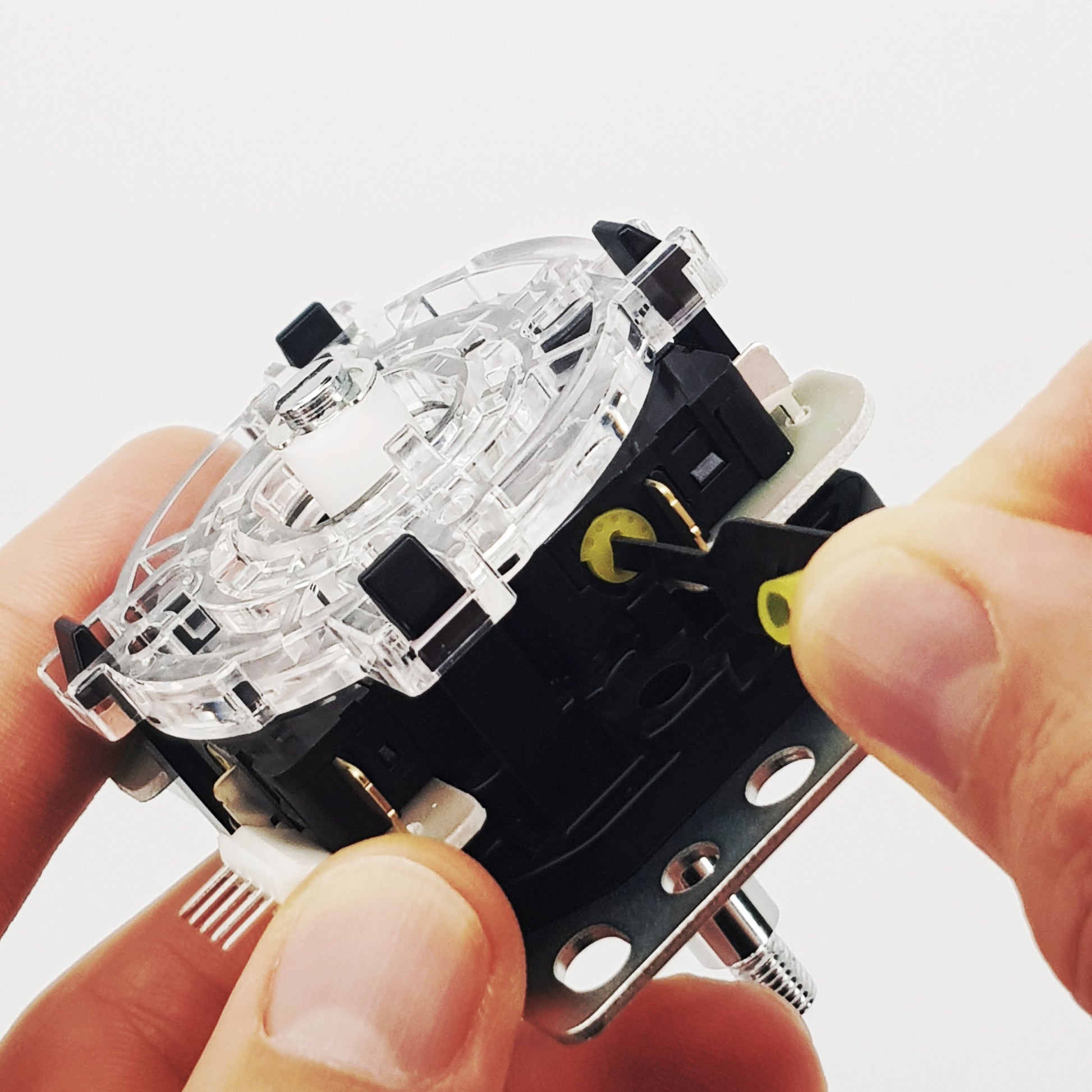

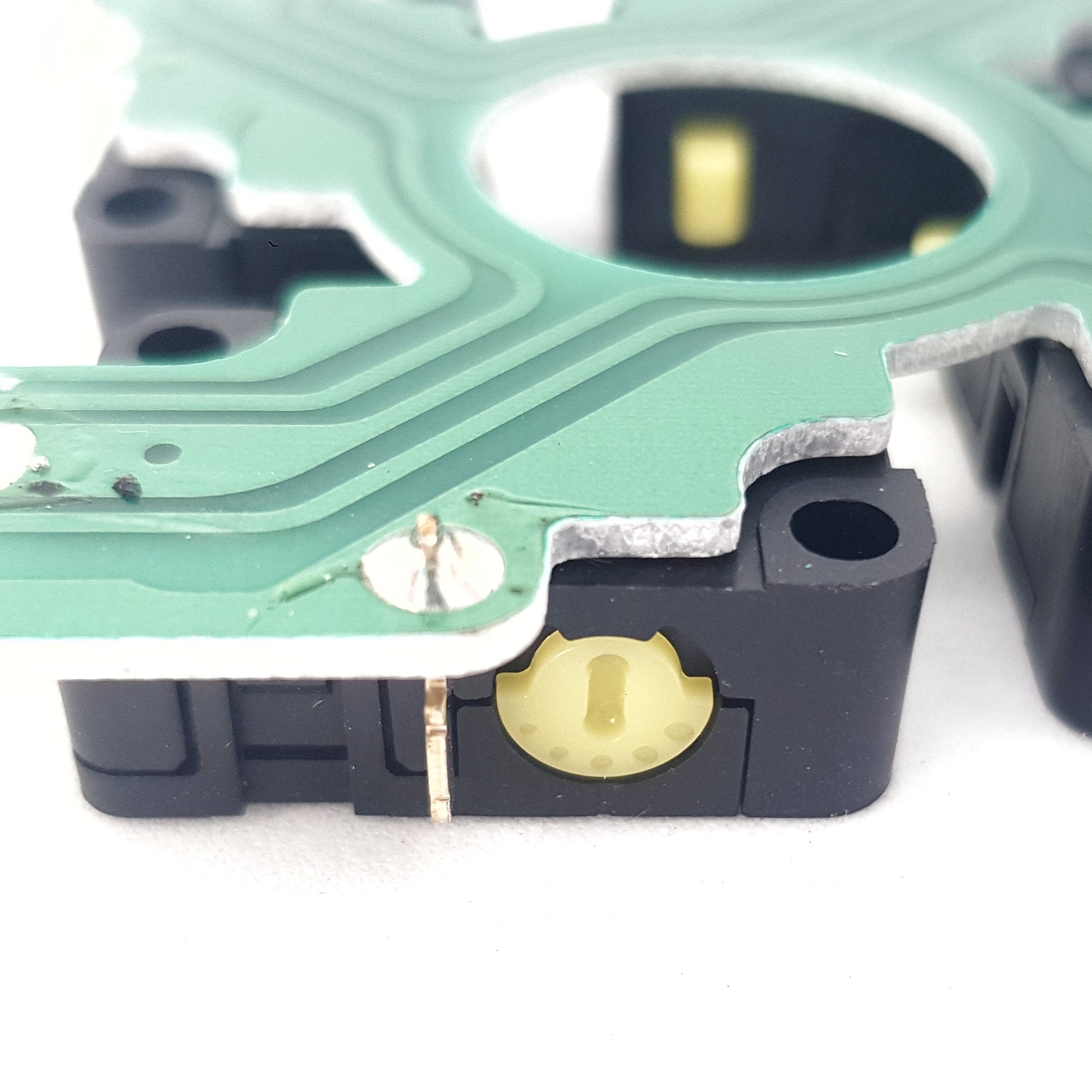

A small adjustable dial permits the user to turn and alter the switch via a small flathead screwdriver or dedicated tool such as the Murakumo Arts carbon fibre adjustment pin: Murakumo Arts carbon fibre leaf lever adjustment pin (for JLX-TPML-8YT – Close Quarters Battle Arcade (cqbarcade.com)

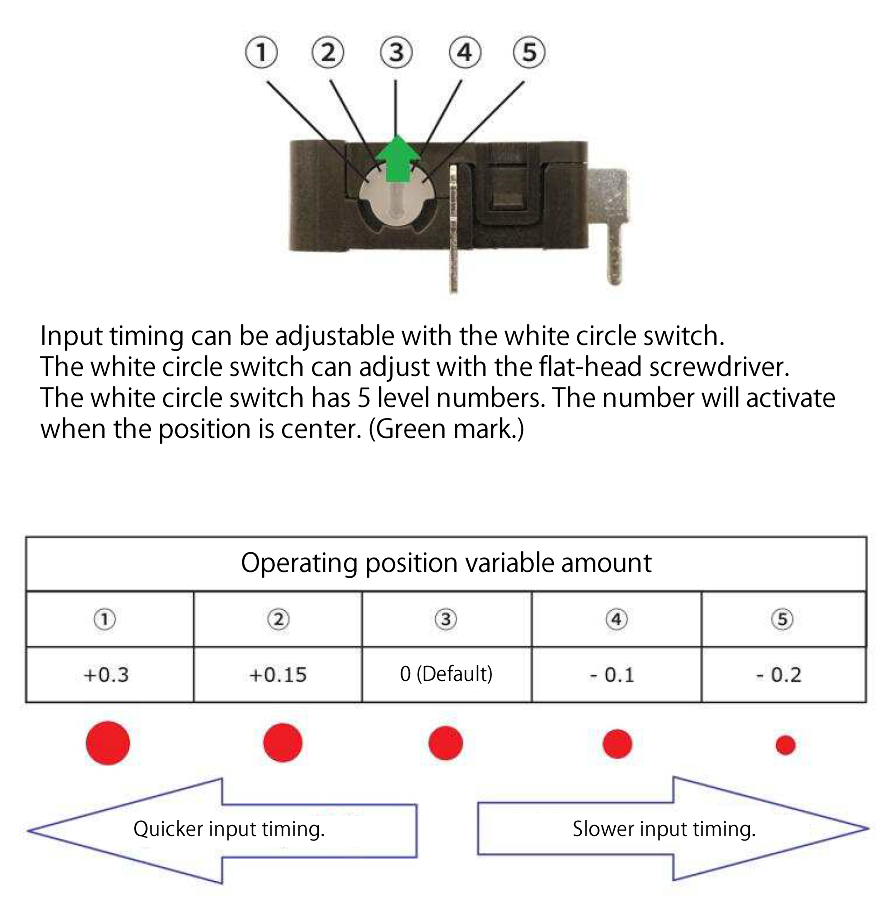

The switches can be tuned for quicker or slower input timings (see images for information) which is highly advantageous for playstyle optimisation and advantages.

The main use case for this product is for replacement of worn or damaged PCB's within the silent joystick JLX-TPML-8YT-SK.

However, an alternative use is to apply this PCB to convert a regular JLX or JLF to a silent operation version (though we recommend also utilising the JLF-P-W actuator for the JLF in this instance).
