Custom universal joystick mount for Taito Viewlix (and Chewlix) by Hadouken Arcade

A custom made and bespoke mounting plate for the Taito Viewlix (and Chinese made clones - "Chewlix") arcade cabinets, manufactured by Hadouken Arcade (USA).

This product was built to solve a reoccurring problem within arcade communities that wanted greater variety of joystick compatibility to use in the HD arcade cabinets from legendary company, Taito.

As a result, this high quality stainless steel mounting bracket features immediate compatibility with Seimitsu and Samducksa joysticks (similar to the KOWAL Universal plate) and permits fitment to original control panels from Taito in addition to other reproduction items from various other manufacturers and creators.

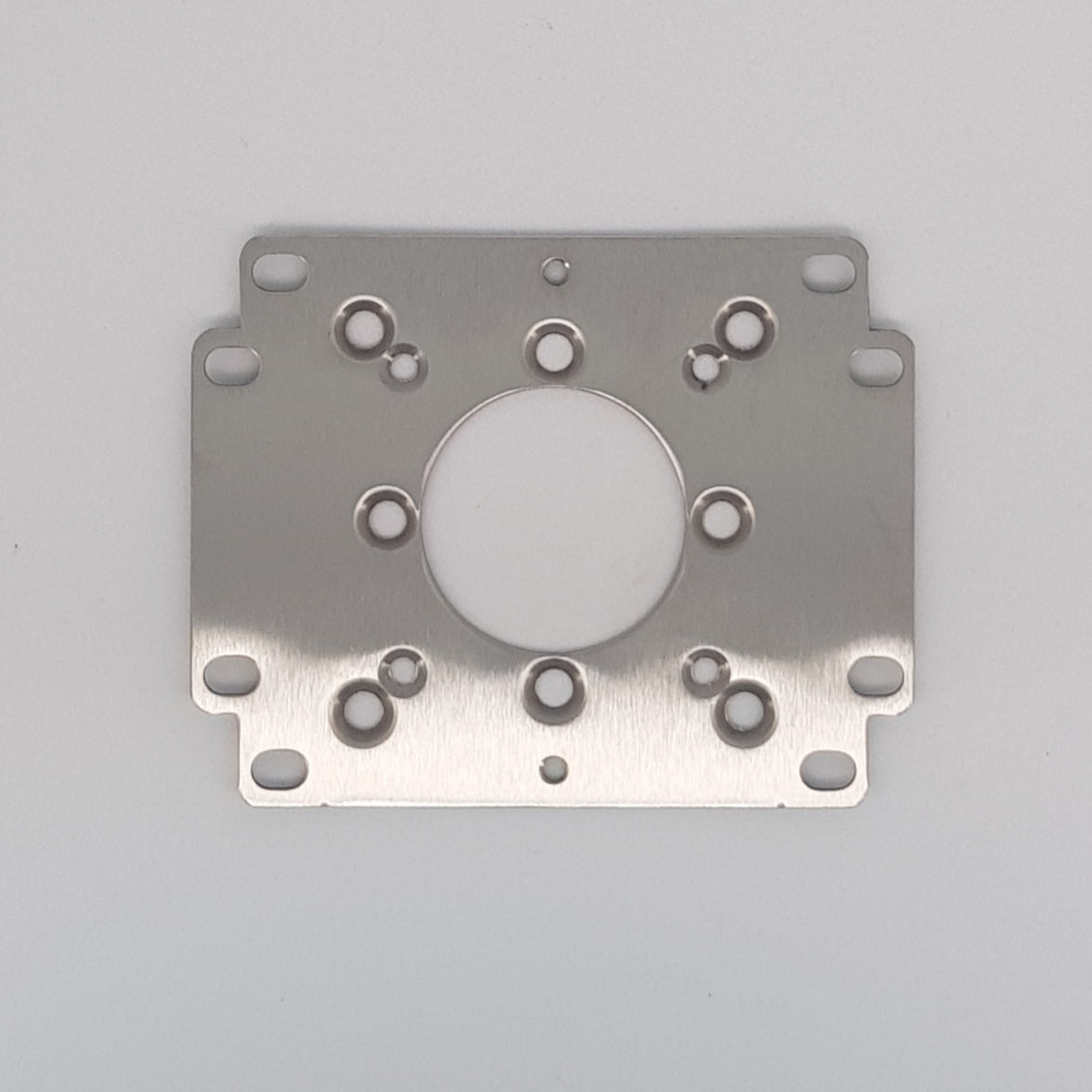

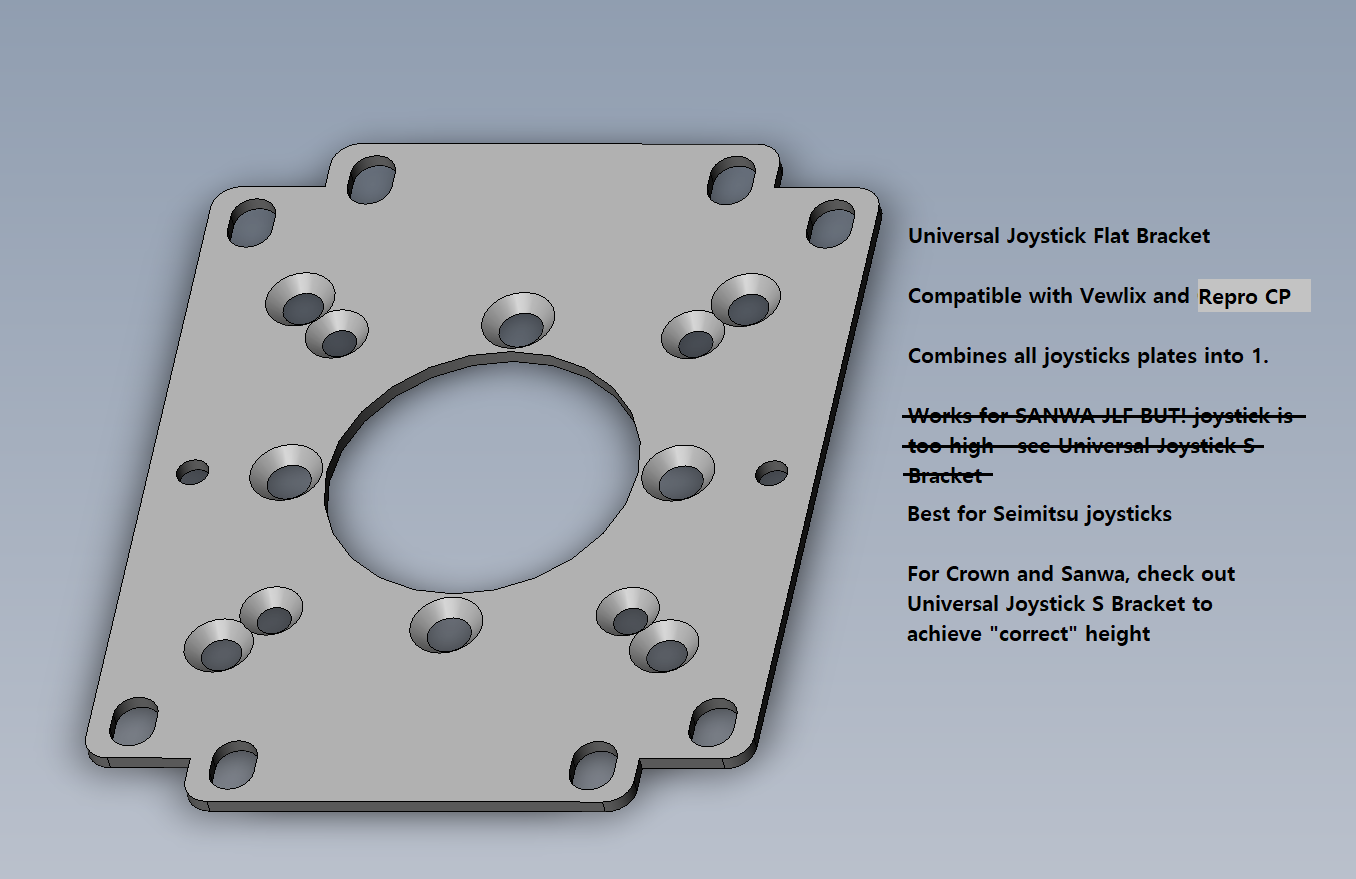

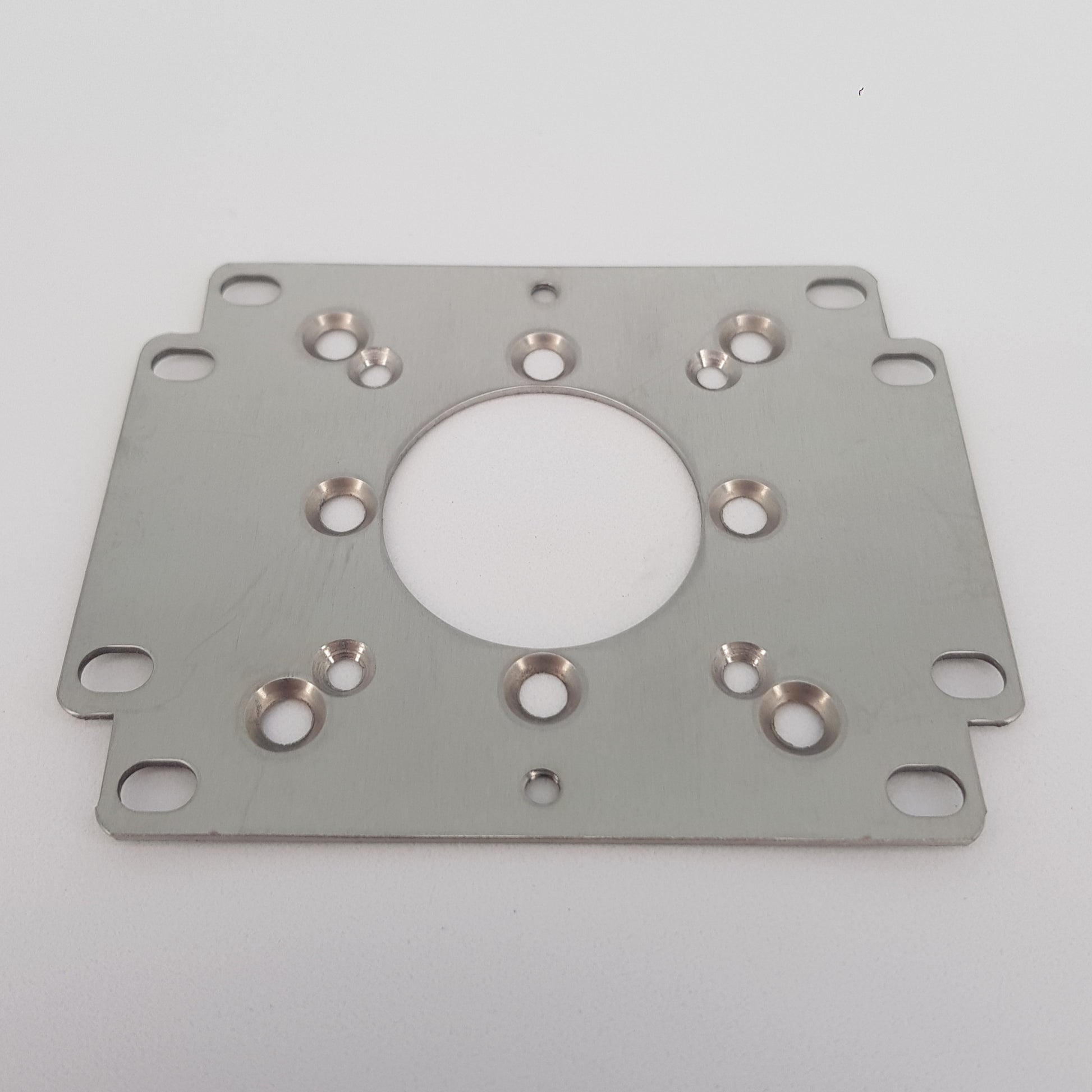

The Flat plate is best used with Seimitsu joysticks for achieving correct height above control panel. Spacers (or joystick shaft extenders) will be required for other brands to ensure user preference of height above control panel is achieved.

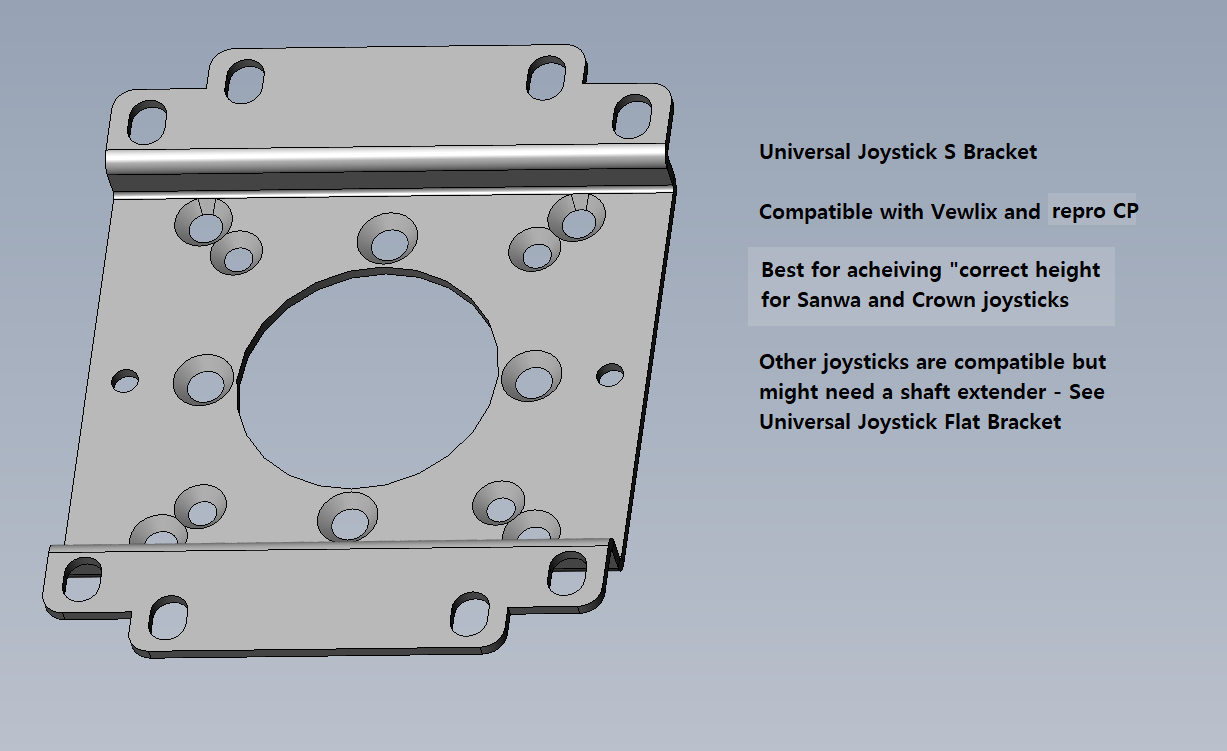

The S plate is best used for Sanwa and Samducksa joysticks, however is being phased out by the manufacturer in place of a flat plate with spacers. Stock of the S plate will be very limited.

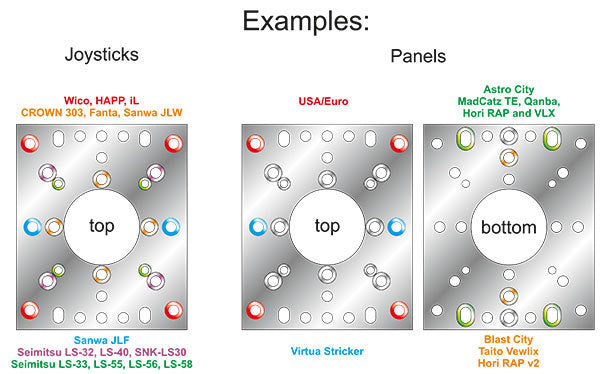

Confirmed compatibility with the following joysticks:

Seimitsu LS-32, LS-40, LS-56

Sanwa JLF

Samducksa (aka. Crown) 309MJ series

(not compatible with Wico, Happ, iL and collared Korean levers)
